Concept:Property

Topic
edit
name	Property
pluralName	Properties
icon
icon Url	/images/6/6a/Element_into_input.png
documentation	a Property is a Feature/Attribute of a Topic
wikiDocumentation	see https://semantic-mediawiki.org/wiki/Help:Properties_and_types https://semantic-mediawiki.org/wiki/Help:Special_properties https://semantic-mediawiki.org/wiki/Help:List_of_datatypes
default storemode	property
list Limit
use cargo
headerTabs
context	MetaModel

properties

	name	label	type	index	sortPos	primaryKey	mandatory	namespace	size	uploadable	defaultValue	inputType	allowedValues	documentation	values_from	showInGrid	isLink	nullable	topic
Property allowedValues	allowedValues	allowedValues	Types/Text	13		false	false		50	false				There are two ways to specified allowed Values: https://semantic-mediawiki.org/wiki/Help:Special_property_Allows_value. Use Property:Allows_value to see which values are allowed for certain properties http://www.mediawiki.org/wiki/Extension:Semantic_Forms/Defining_forms#.27field.27_tag values=possible values - Specifies a set of either possible values or autocompletion values (depending on the input type) that this field can have, overriding whatever set of values may have been set from the Semantic MediaWiki property. This set of values is separated by commas by default, but the delimiter can be modified using the delimiter= parameter. If you specify any values method number 2 will be used here which might override any allowed Values specified with method number 1.			false		Property
Property defaultValue	defaultValue	default	Types/Code	11		false	false		80	false				default value - Specifies a default value for this field. For date-related fields, default=now will set the value to the current date and possibly time. For text fields, default=current user will set the value to the username of the user adding this page. For the checkbox input type, default=yes will check the checkbox by default. (The 'checkboxes' input type, on the other hand, like the 'listbox' type, requires specifying the actual values, like default=Value A, Value C.) You can also include templates, parser functions, and magic words within the 'default=' value. see http://www.mediawiki.org/wiki/Extension:Semantic_Forms/Defining_forms#.27field.27_tag (default)			false		Property
Property documentation	documentation	documentation	Types/Text	14		false	false		500	false		textarea		The documentation for a property			false		Property
Property index	index	index	Types/Number	4		false	false			false				A positive number that specifies at which position of a Topic the given property should show. The first property to show has the index 1 each following property has an index that is +1 of the previous.		true	false		Property
Property inputType	inputType	inputType	Types/Text	12		false	false		50	false		dropdown	text, combobox, dropdown, textarea, tree, datetime, datepicker, timepicker, datetimepicker, menuselect,two listboxes, datecheck, regexp, radiobutton, googlemaps	see http://www.mediawiki.org/wiki/Extension:Semantic_Forms/Defining_forms#.27field.27_tag input type - Specifies the type of input this field will have in the form. If a field corresponds to an SMW property or Cargo field, the form will usually have the correct input type by default; otherwise the default is text. If the corresponding SMW property, or Cargo field, cannot be automatically determined, you can use the parameter 'property', or the parameters 'cargo table' and 'cargo field', to manually specify it (see below). The allowed set of input types is different for every semantic property type; see below for the full list of options. http://www.mediawiki.org/wiki/Extension:Semantic_Forms/Defining_forms#Allowed_input_types_for_data_types http://www.mediawiki.org/wiki/Extension:Semantic_Forms_Inputs			false		Property
Property isLink	isLink	isLink	Types/Boolean	17		false	false			false				true if this Property is derived form a Link. It will not be exported to SiDIF separately and automatically be added by the Property Generator		false	false		Property
Property label	label	label	Types/Text	2		false	false		50	false				The label to be shown when in a form			false		Property
Property mandatory	mandatory	mandatory	Types/Boolean	7		false	false		4	false				Specifies that this field must be filled in by the user. Note: mandatory should not be used in conjunction with hidden. Use of both in any field will cause the mandatory check on any field to fail when the form is saved. see http://www.mediawiki.org/wiki/Extension:Semantic_Forms/Defining_forms#.27field.27_tag			false		Property
Property name	name	name	Types/Text	1	1	true	true		50	false				The name of the property			false		Property
Property namespace	namespace	namespace	Types/Text	8		false	false		20	false				namespace prefix			false		Property
Property nullable	nullable	allow nulls?	Types/Boolean	18		false	false			false	false			should nullvalues be allowed and value set to NULL when empty?		false	false		Property
Property primaryKey	primaryKey	primary key	Types/Boolean	6		false	false		4	false				is this property a primary key of it's topic?			false		Property
Property showInGrid	showInGrid	showInGrid	Types/Boolean	16		false	false			false	true			I am true if this property is displayed in the default list of properties for my topic as a column		true	false		Property
Property size	size	size	Types/Number	9		false	false		3	false				the display size of the field for the property			false		Property
Property sortPos	sortPos	sortPos	Types/Number	5		false	false		3	false				If none empty >0 this is the position in the sort clause of this property. This is used when displaying list of the topic as the default sort order and it is used for selecting topics . E.g. Sortpos 1 for attribute lastname and sortpos 2 for attribute firstname leads to sort by lastname,firstname			false		Property
Property topic	topic	topic	Types/Page									dropdown			concept=Topic		true		Property
Property type	type	type	Types/Page	3		false	false			false	Special:Types/Text	dropdown		The type of a Property	property=Property_type	true	false		Property
Property uploadable	uploadable	uploadable	Types/Boolean	10		false	false		4	false				Specifies that a link should be placed next to this field, that opens a popup window to let the user upload a file; see 'Uploading files', below. See https://www.mediawiki.org/wiki/Extension:Semantic_Forms/Defining_forms#.27field.27_tag https://www.mediawiki.org/wiki/Extension:Semantic_Forms/Defining_forms#Uploading_files The type of the target property needs to be Page for this to work			false		Property
Property values from	values_from	values from	Types/Code	15		false	false		200	false		textarea		Specifies where to get the possible values to be displayed in a form from see http://www.mediawiki.org/wiki/Extension:Semantic_Forms/Defining_forms#.27field.27_tag values from property=property name - Similar to values=, but gets its values from the the set of all values that a certain SMW property points to. values from category=category name - Similar to values=, but gets its values from the names of all pages belonging to a specific category. values from concept=concept name - Similar to values=, but gets its values from the names of all pages belonging to a specific concept. values from namespace=namespace name - Similar to values=, but gets its values from the names of all pages belonging to a specific namespace. (To get values from the main namespace, use 'Main' for the namespace name, or just leave it blank.) values from url=URL identifier - Used only for autocompletion. Specifies that autocompletion should be based on the values retrieved from an outside URL; see Autocompleting on outside values for how to do this. values from external data=variable name - Used for autocompletion. You need to have theExternal Data extension installed to be able to use this parameter. It specifies that autocompletion should be based on the data retrieved from an outside source. A large number of data sources are supported, including web APIs, regular wiki pages, files on the local server, databases and LDAP directories. See Autocompletion using External Data.			false		Property

Documentation

see

• https://semantic-mediawiki.org/wiki/Help:Properties_and_types
• https://semantic-mediawiki.org/wiki/Help:Special_properties
• https://semantic-mediawiki.org/wiki/Help:List_of_datatypes

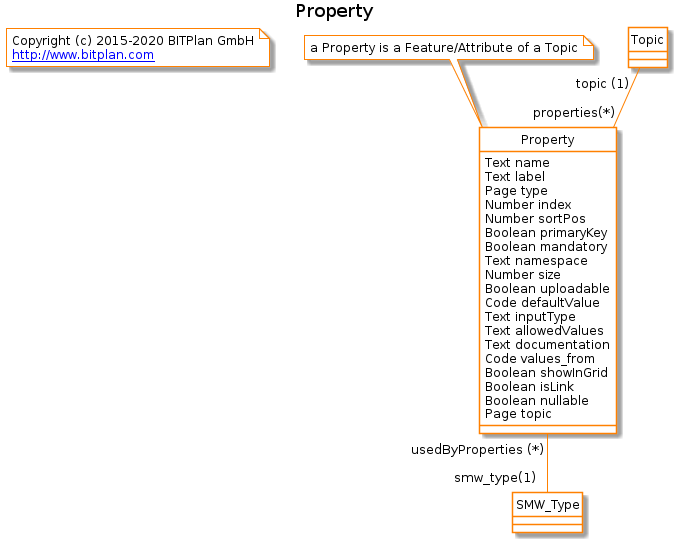

uml

Description of concept "Property"RDF feed

Properties

see also

• List of Properties
• Help:Property
• Concept:Property
• Category:Property
• Template:Property
• Form:Property

topic links:

• Category:SMW_Type

  [[Property name::+]]
